Basic Switch Common Accessories

Separator / Actuator for Basic Switches

  • V/D3V-01/VX/D2MV/D2RV/D2VW Common Accessories
  • SS/SS-P/D2S/D2SW/D2SW-P Common Accessories
RoHS Compliant
Note: This web page provides an excerpt from a datasheet. Refer to Product Datasheet and other applicable documents for more information.

Ordering Information

Actuators (Sold Separately)

Actuators are supplementary components used when operating the Switch using cams or dogs or when transmitting mechanical movements that are not in alignment with the switch plunger.
The VAL models are suitable for cases where a Switch is operated by a rotary cam or sliding devices with relatively low operation frequency.
The VAM models are designed to operate in reverse movements and have high shock and vibration resistance. Since the Overtravel (OT) of these models is rather large, they can be used for automatic control or door switches of machining tools.
The VAV models can be used where a small Operating Force (OF) is required.

Separator (Sold Separately)

To ensure a secure insulation distance, or if there are other metal parts or copper wire installed too close to the Switch, use a separator purchased separately to keep the insulation distance.

List of models

scroll
Appearance Applicable Switches Thickness (mm) Model
V / D3V-01 / VX / D2MV / D2RV / D2VW
V / D3V-01 / VX / D2MV / D2RV / D2VW 0.18 SEPARATOR FOR V0.18
0.25 SEPARATOR FOR V0.25
SS / SS-P / D2S / D2SW / D2SW-P
SS / SS-P / D2S / D2SW / D2SW-P 0.18 SEPARATOR FOR SS0.18
0.4 SEPARATOR FOR SS0.4

Dimensions / Operating Characteristics

(Unit: mm)

* Model numbers are for the Actuators only.
The value given for operating characteristics are reference values. For operating characteristics of models not listed above, consult your OMRON sales representative.

Leaf Spring Model

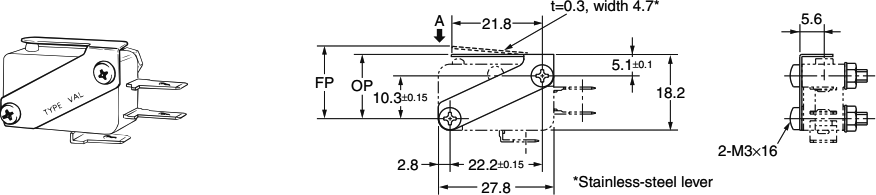

VAL
Leaf Spring Model: VAL
Operating characteristics In the case of V-15-1A5
Operating Force OF max. 2.26 N { 230 gf}
Releasing Force RF min. 0.49 N {50 gf}
Overtravel OT min. 0.8mm
Movement Differential MD max. 0.4mm
Free Position FP max. 17 mm
Operating Position OP 14.9±0.5 mm

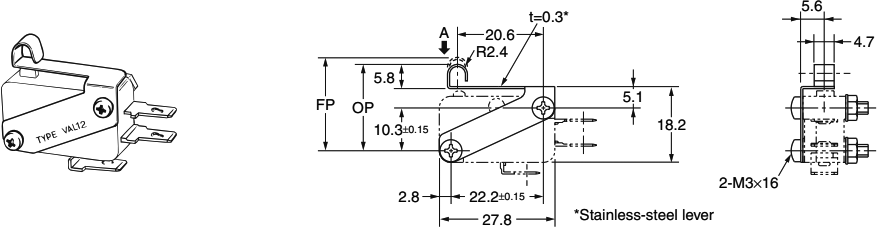

Simulated Leaf Spring

VAL12
Simulated Leaf Spring: VAL12
Operating characteristics In the case of V-15-1A5
Operating Force OF max. 2.26 N { 230 gf}
Releasing Force RF min. 0.49 N {50 gf}
Overtravel OT min. 0.8mm
Movement Differential MD max. 0.4mm
Free Position FP max. 22.9 mm
Operating Position OP 20.5±0.8 mm

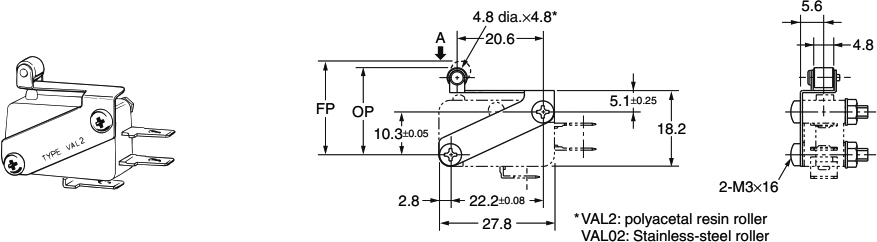

Roller Leaf Spring

VAL2 / VAL02
Roller Leaf Spring: VAL2 / VAL02
Operating characteristics In the case of V-15-1A5
Operating Force OF max. 2.26 N { 230 gf}
Releasing Force RF min. 0.49 N {50 gf}
Overtravel OT min. 0.8mm
Movement Differential MD max. 0.4mm
Free Position FP max. 22.6 mm
Operating Position OP 20.5±0.5 mm

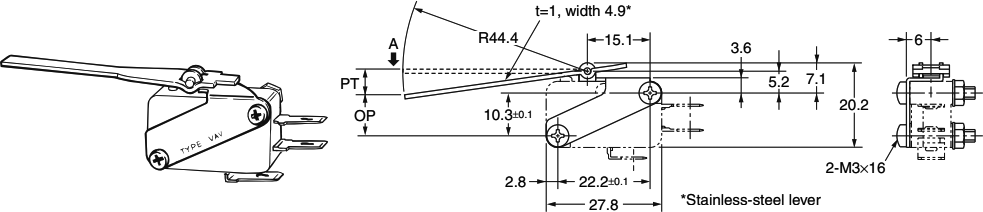

Long Hinge Lever

VAV
Long Hinge Lever: VAV
Operating characteristics In the case of V-15-1A5
Operating Force OF max. 0.34 N {35 gf}
Releasing Force RF min. 0.04 N {4 gf}
Pretravel PT Max. 7.6 mm
Overtravel OT min. 3.6 mm
Movement Differential MD max. 4.7 mm
Operating Position OP Approx. 10.6 mm

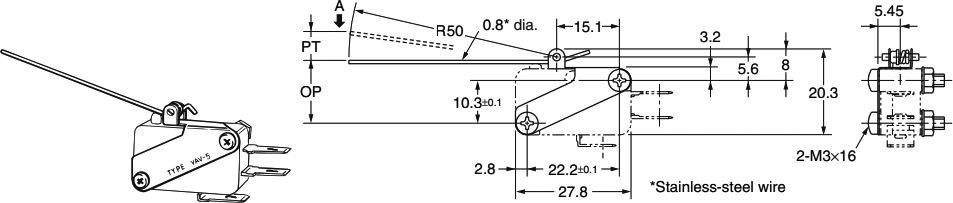

Hinge Wire Lever

VAV-5
Hinge Wire Lever: VAV-5
Operating characteristics In the case of V-15-1A5
Operating Force OF max. 0.03 N {3 gf}
Pretravel PT Max. 16 mm
Overtravel OT min. 2 mm
Movement Differential MD max. 5 mm
Operating Position OP Approx. 16.7 mm

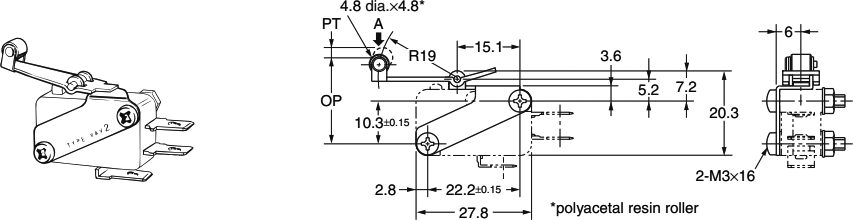

Hinge Roller Lever

VAV2
Hinge Roller Lever: VAV2
Operating characteristics In the case of V-15-1A5
Operating Force OF max. 0.74 N {75 gf}
Releasing Force RF min. 0.09 N {9 gf}
Pretravel PT Max. 4.8 mm
Overtravel OT min. 1.5 mm
Movement Differential MD max. 1.2 mm
Operating Position OP 18.6±1.6 mm

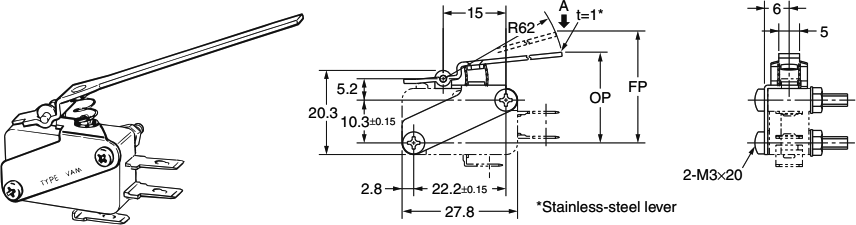

Reverse Long Hinge Lever

VAM
Reverse Long Hinge Lever: VAM
Operating characteristics In the case of V-15-1A5
Operating Force OF max. 1.96 N {200 gf}
Releasing Force RF min. 0.29 N {30 gf}
Overtravel OT min. 7mm (reference value)
Movement Differential MD max. 5mm
Free Position FP Max. 45 mm
Operating Position OP 20±9 mm

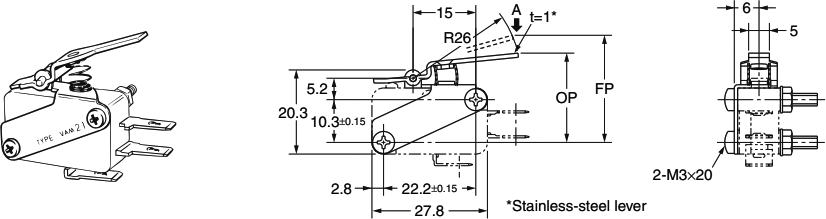

Reverse Hinge Lever

VAM21
Reverse Hinge Lever: VAM21
Operating characteristics In the case of V-15-1A5
Operating Force OF max. 3.53 N {360 gf}
Releasing Force RF min. 0.69 N {70 gf}
Overtravel OT min. 5 mm (reference value)
Movement Differential MD max. 4 mm
Free Position FP Max. 30 mm
Operating Position OP 20±4 mm

Reverse Hinge Modified Lever

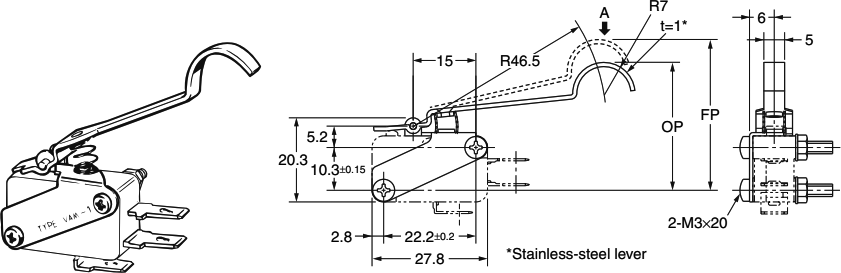

VAM-1
Reverse Hinge Modified Lever: VAM-1
Operating characteristics In the case of V-15-1A5
Operating Force OF max. 2.94 N {300 gf}
Releasing Force RF min. 0.39 N {40 gf}
Overtravel OT min. 5 mm (reference value)
Movement Differential MD max. 6 mm
Free Position FP Max. 47 mm
Operating Position OP 30±5 mm

Reverse Roller Modified Lever

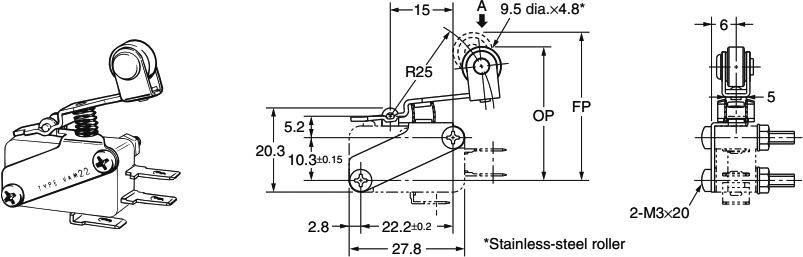

VAM22
Reverse Roller Modified Lever: VAM22
Operating characteristics In the case of V-15-1A5
Operating Force OF max. 3.53 N {360 gf}
Releasing Force RF min. 0.69 N {70 gf}
Overtravel OT min. 3 mm (reference value)
Movement Differential MD max. 4 mm
Free Position FP Max. 38 mm
Operating Position OP 31±3 mm

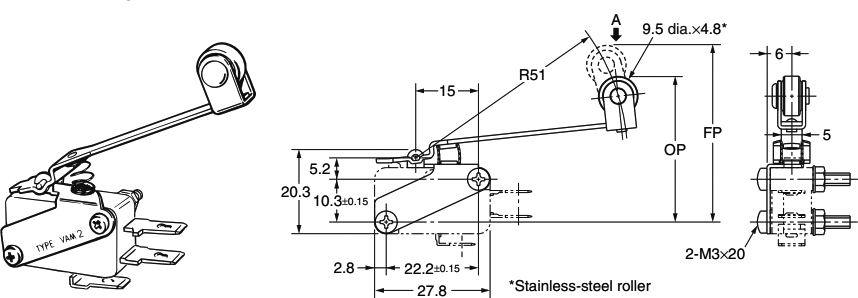

Reverse Long Hinge Roller Lever

VAM2
Reverse Long Hinge Roller Lever: VAM2
Operating characteristics In the case of V-15-1A5
Operating Force OF max. 2.45 N {250 gf}
Releasing Force RF min. 0.39 N {40 gf}
Overtravel OT min. 7 mm (reference value)
Movement Differential MD max. 6 mm
Free Position FP Max. 48 mm
Operating Position OP 31±6 mm
